Protect your 68RFE transmission with the Banks Ram-Air Transmission Pan, engineered for Ram trucks powered by the legendary 6.7L Cummins diesel.

Using Banks' patented Ram-Air® cooling technology, this transmission pan forces airflow through FlowThru® cooling fins to remove heat faster than the factory pan and competing designs. Lower transmission temperatures help extend transmission fluid life and improve reliability when towing heavy trailers, hauling loads or tackling demanding work conditions.

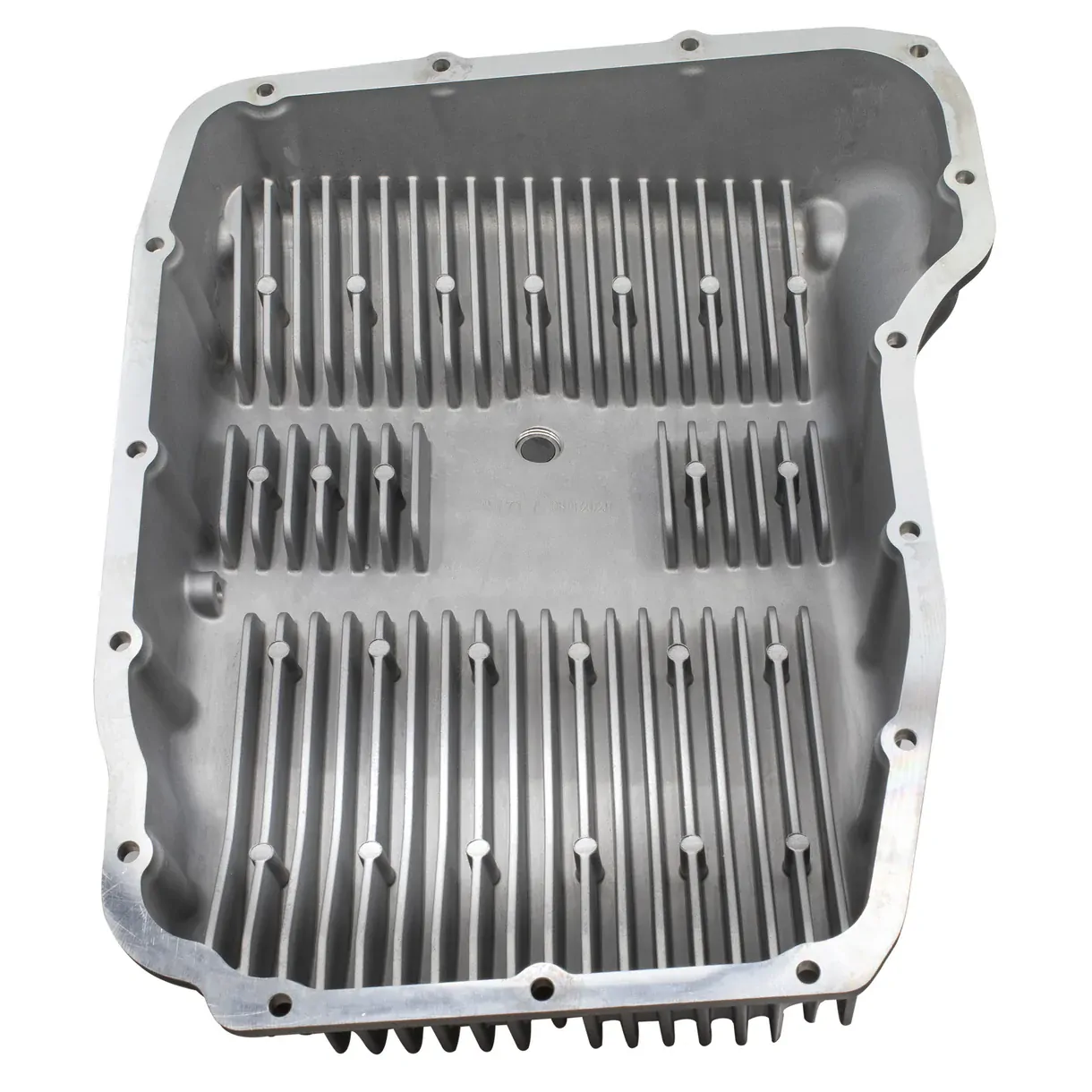

Manufactured from heavy-duty die-cast aluminium, the pan increases transmission fluid capacity by approximately 3 quarts, providing greater thermal mass while maintaining excellent ground clearance. A magnetic drain plug, full-drain design and patented breakaway Ram-Air scoop make servicing simple while protecting the pan from accidental impacts.

Whether your Ram is a daily workhorse or a dedicated tow vehicle, the Banks Ram-Air Transmission Pan is built to maximise cooling performance and transmission longevity.

Key Features

• Patented Ram-Air® forced-air cooling
• Adds approximately 3 quarts of transmission fluid
• FlowThru® cooling fins
• Heavy-duty die-cast aluminium construction
• Magnetic drain plug
• Full fluid drainage during servicing
• Breakaway Ram-Air scoop
• Maintains excellent ground clearance
• Black powder-coated finish
• Genuine Banks Power product
• Part Number: 35170-B

Compatibility

Ram

• Ram 2500 (2007.5-Current)
• Ram 3500 (2007.5-Current)
• Ram 4500 (2008-Current)
• Ram 5500 (2008-Current)

Engine

• 6.7L Cummins Turbo Diesel

Transmission

• 68RFE 6-speed automatic

Fitment Notes

• Fits 68RFE transmissions only.
• Does not fit High Output 6.7L Cummins models equipped with the Aisin transmission.
• Some 2020-2023 Ram 2500 and 2020-2022 Ram 3500 models affected by the transmission dipstick recall require the updated factory dipstick before installation.
